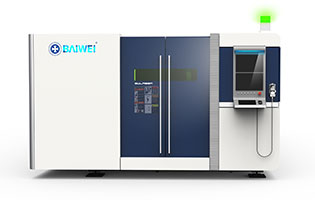

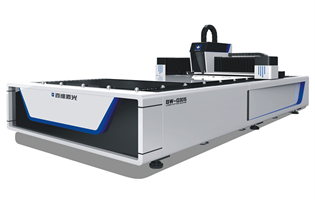

Closed type fiber laser cutting machine
Closed type fiber laser cutting machine
Closed type fiber laser cutting machine
Closed type fiber laser cutting machine
Closed type fiber laser cutting machine
Closed type fiber laser cutting machine
Output Power:
2kw/3kw/4kw/6kw/8kw/12kw (Optional)
Table size:

BW-G6020 Closed type fiber laser cutting machine

Model: BW-G6020
Cutting range: 6000x2000mm (Optional)
Laser power: 1kw/2kw/3kw/4kw/6kw/8kw/10kw/12kw/15kw/20kw/30kw (Optional)
Max moving speed: 100m/min
Max cutting speed: 35-80m/min
Positioning accuracy: 0.03mm
Repositioning accuracy: 0.02mm
Min line width: 0.1mm
Product Description
Fiber laser cutting machine adopts the most advanced fiber laser output laser beam of high energy density, and focused on the workpiece surface, making areas on the workpiece be melting and gasification instantly by ultra fine focal spot light;Automatic cutting is achieved by moving the light spot through the CNC mechanical system.It is one of the high-tech equipment with features of the most advanced optical fiber laser technology, numerical control technology, precision machinery technology.

Industry Applications:

Baiwei BW-G3015 fiber laser cutting machine as one classic model,widely used in manufacturing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, engineering machinery, precision parts, ships, metallurgical equipment, elevators , metal processing,and other manufacturing and processing industries.
Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

High precision machine bed:
1. Fiber laser cutting machine lathe bed part completely independent research and development, by the party welding lathe bed base, through the large gantry milling machine.
2. For large machine bed we have many years of experience in processing, each machine bed will be placed 30 to 45 days after rough machining natural failure, the internal stress release completely again after finishing, ensure the machining accuracy. High strength, stability, ensuring 10 years of use without distortion.

Advantage of fiber laser cutting
1. Adopting gantry dual drive structure, high precision gear, gear reducer drive and linear guide rail, drive smoothly, high speed, high accuracy.
2. The imported servo motor is Germany, America original imported servo motor (Various options ) and drive system,with higher stability, higher speed and faster acceleration speed.
3. Using the special control system of optical fiber laser, all digital CNC servo motor communication, humanized design, operation is faster.
4. The optical fiber laser cutting head and Z-axis transmission system are adopted, and the speed and precision are higher.
5. Adopting leading technology, small volume, high beam quality.
6. The new peripheral design can enter the equipment working area from 3 different directions.

Fiber laser features:
1. Good laser beam quality, Steel cast structure, longtime service life
2. High output stability, high performance
3. Low power consumption
4. Small size
5. Optical fiber laser cutting machine has obvious advantages in thin plate cutting
6. 100,000 hours of lifetime, free maintenance; Low energy consumption, only 20%-30% of the traditional CO2 machine.
Models BW-G3015 BW-G4015 BW-G4020 BW-G6015 BW-G6020 Optional
Cutting range 3000x1500mm 4000x1500mm 4000x2000mm 6000x1500mm 6000x2000mm Optional
Laser power 1kw/2kw/3kw/4kw/6kw/8kw/10kw/12kw/15kw/20kw/30kw
Max moving speed 100m/min
Max cutting speed 35-80m/min
Positioning  accuracy 0.03mm
Repositioning  accuracy 0.02mm
Min line width 0.1mm
Main Configuration
Raycus Brand Laser Source in China
Auto Focus Laser cutting
Water Cooling systems
Cypcut 3000C CNC
Shimpo (Japan) Precision
Japan Panasonic High accuracy
Automatic lubricant system
Japan Panasonic servo driver
High Precision Gear and Rack
YYC High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears,so that the load drive structure is compact, can effectively reduce the driving torque.

Baiwei have dozens of large-scale world-class machining equipment (e.g. five axis imported machining center with length of 14 * 6m, 8 * 4m, 6 * 3M), which is rare in the same industry. 98% other suppliers have no these further equipment,If no these equipment.The bed working life and accuracy could not assurance. All important components of our laser cutting machines and other equipment are processed by our own factories equipment. In this way, we can ensure the accuracy and quality of the laser cutting machines at the machine source. 80% of the laser cutting accuracy comes from the equipment, 19% from the processing accuracy, and 1% from the system, However,Unlike most foundries (where important components are made by their foundry manufacturers), quality, accuracy and processing time cannot be guaranteed. and the quality, accuracy and processing time cannot be guaranteed. For example, our machine tool rack needs 70 hours to complete. If it is sent to other company for processing, it only needs 30 hours. The quality of the products is very different.
Bawei's unique world-level top quality assurance: blast cleaning, punching, chamfering, and other fine machining. All the technological processes are completely produced by our factory at one time, and the accuracy of the machining center can reach 0.003mm. The quality and performance are excellent, advanced and practical, different from the external processing and assembly of the machine bed, which cannot fundamentally control the quality of the machine tool. Both in quality and performance are at the leading level. Be the best choice for baiwei users.
As one of the few laser cutting machine manufacturers with its own annealing furnace qualification.with a depth of 7 meters and a length of 16 meters, six beds can be annealed at the same time. The temperature is raised by about 600, and then the constant temperature is maintained for four hours, and then the temperature is reduced. It requires two anneals and one vibration to completely eliminate the stress.
S104 Cast Aluminum Beam
Integrated molding forming.Not welding type.Light weight can ensure its fast running speed;better hardness can guarantee its longer service
Machine bed (Heavy Machine BED}We choose Heavy plate welding table after heat treatment; Best Plate Welding Bed only heavy machine can ensure stable performance and precision.
High temperature refractory brick
Absorb high temperature,Highly protect the work bed structures.
Bed inside Hot Air exhaust outlet
Baiwei Quality Management Systems (SPECIAL ADVANTAGES)
We have very strict process rules for each process step, adhering to strict requirements for quality and continuous innovation of product details. Customer's word of mouth is our core competitiveness, that's why we can become China's NO, 1 brand.
